Automatic Premade Zip Lock Pouch Capsule Tablets Pills Packing Machine

Automatic Stand up Zipper Pouch Capsule Counting Packing Machine | Automatic Zip Lock Doy Pack Tablets Counting Packing Machine | Automatic Zipper Doypack Pills Packaging Machine

Product Parameters

BrandEASYREALM
NO.YLM-PMHZ-210GP
Get Latest Price

Machine Introduction

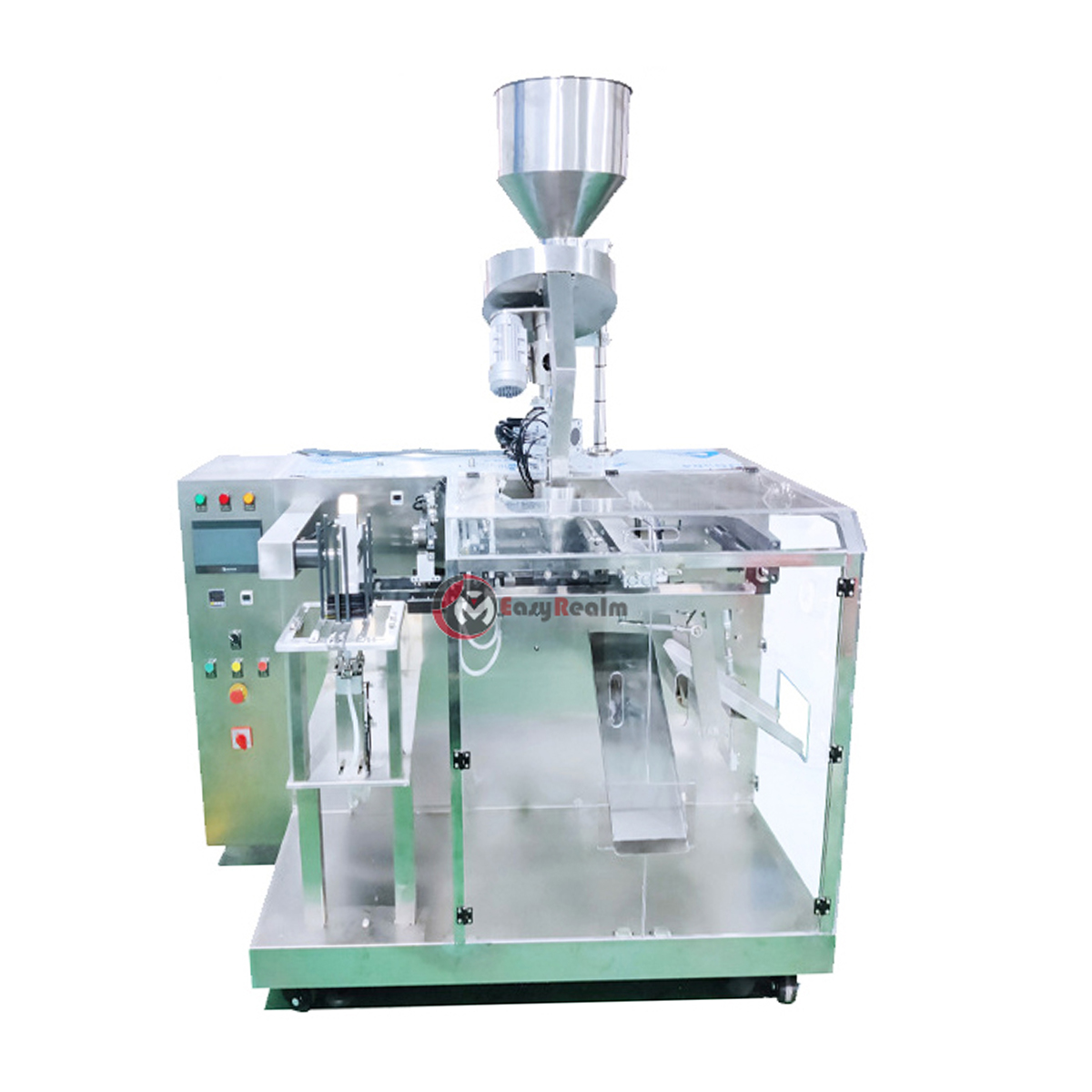

Automatic Stand up Zipper Pouch Capsule Counting Packing Machine | Automatic Zip Lock Doy Pack Tablets Counting Packing Machine | Automatic Zipper Doypack Pills Packaging Machine

  • The automatic stand up zipper pouch capsule packing machine is for counting & packaging small parts, capsules, pills, tablets, etc.
  • It can do filling and sealing for such bag types as zip lock bag, doypack, doy pack, stand up zipper pouch, premade zipper bag, zip closure stand-up pouch, etc.
  • This automatic zip lock doy pack tablets counting packing machine is composed of a vibratory counting bowl, and an automatic doypack pick fill seal packing machine.
  • It does small parts counting and filling (by a vibratory counting bowl), premade bag picking up, opening, filling and sealing fully automatically with a packing speed of 20-40pcs per minute. Functions of date printing, zip opening, nitrogen flushing and euro hole punch are optional.
  • Easyrealm is one of the premade pouch packing machine manufacturers in China. We are manufacturing and supplying all kinds of premade bag packing machines at low cost, such as single station premade pouch packing machine, double station pick fill seal machine, mini doypack packing machine, automatic linear premade stand up zipper pouch packaging machine for granules, premade zip lock bag powder filling machine, premade liquid spout pouch filling and sealing machine, etc.
  • All kinds of side gusset bag packing machine can be custom designed and fabricated to your specific specifications or requirements.

Machine Video



Machine Applications

All Kinds of Small Parts: gummy candies, jelly beans, capsules, pills, tablets, etc.

Pouch Types

[object Object]

Machine Specifications

1) Easy and simple to put bags in the bag slot, equipped with automatic bag pressing device;
2) No filling, no sealing;
3) The machine is of SS304 appearance. Carbon steel frame and some parts are acid- resistant, salt-resistant anti-corrosion layer processed.
4) Most parts are fabricated by mold production; the main material is 304 stainless and alumina.

[object Object]

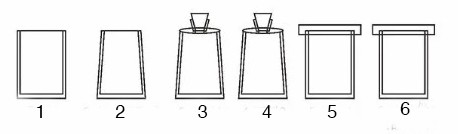

1. Pouch picking up
2. Pouch opening
3. Filling product (first time)
4. Filling product (second time)
5. Sealing (first time)
6. Finished packages taking away

Optional:

1) Date/Bath No. Printing (ribbon printer)

2) Zip opening

3) Euro hole punch

4) Nitrogen flushing

[object Object]

The working stations can be added or removed according to the products and pouch type.

ModelYLM-PMHZ-210GP
Bag SizeWidth: 100-210mm, Length: 110-320mm
Speed20-40 bags per minute
Filling volume range20g-1000g (depending on material)
Power Supply380V 50Hz 2.5KW
Machine weight600kgs
Air consumption0.7m3/min
Applicationzip bag, stand up zipper pouch, zip lock doypack
