High-speed 4 Filling Nozzle Head Doypack Stand up Pouch Liquid Filling Sealing Packing Machine
High-speed Premade 4 Pouch Liquid Filling Machine | High Speed Automatic 4 Stand up Pouch Filling and Sealing Machine | High Speed Doypack Liquid Filling Packing Machine
Product Parameters
Machine Introduction
High-speed Premade 4 Pouch Liquid Filling Machine | High Speed Automatic 4 Stand up Pouch Filling and Sealing Machine | High Speed Doypack Liquid Filling Packing Machine

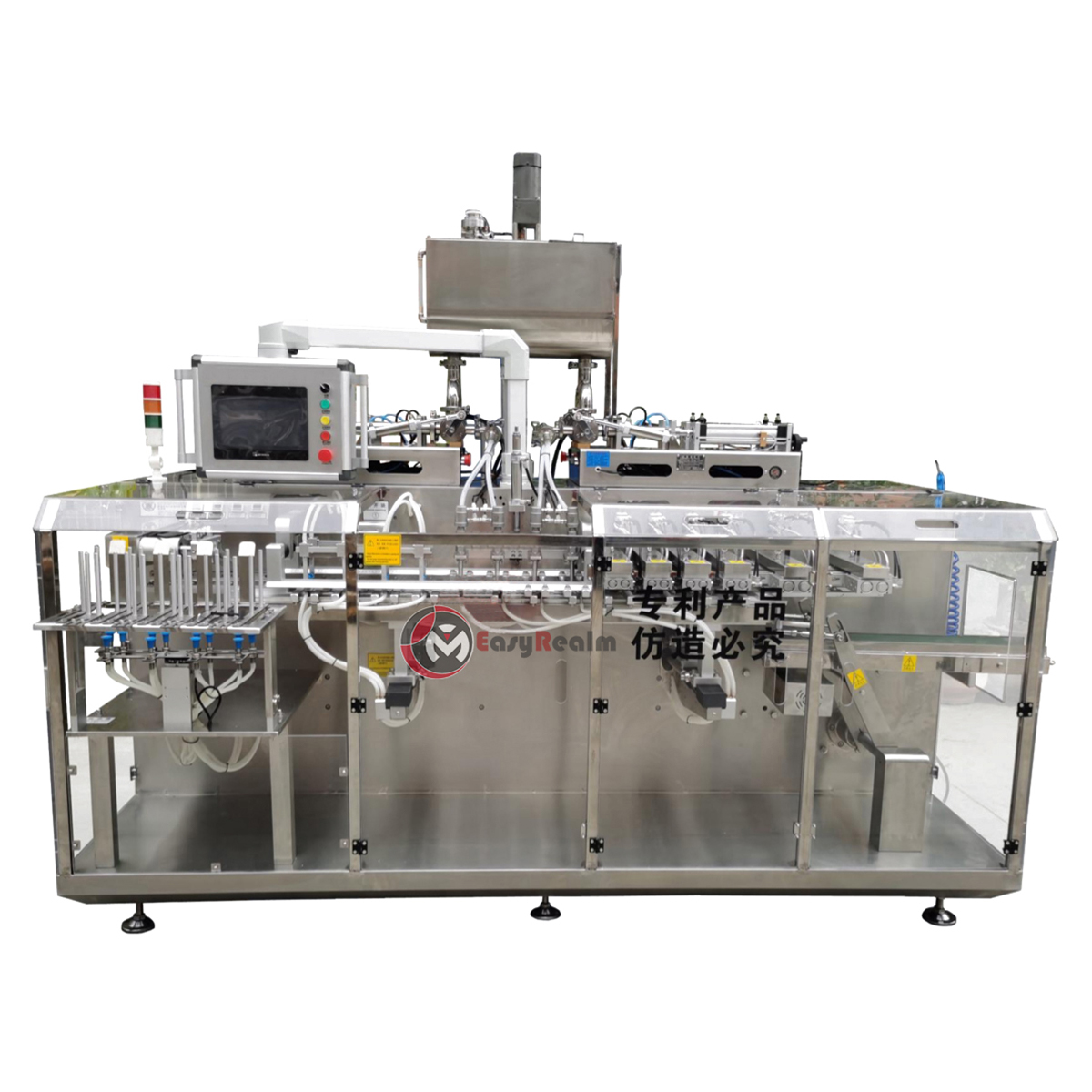

- The high-speed premade 4 pouch liquid filling machine is for filling and packing liquid products or paste products in premade stand up pouches.
- This high speed 4 stand up pouch filling and sealing machine is composed of 4 dosing & filling pumps, a liquid material hopper and an automatic high speed doypack pick fill seal filling packing machine.
- It does material dosing and filling (by pump), premade pouch picking up, opening, filling and sealing fully automatically with a packing speed of 120-160pcs per minute. The function of date printing is optional.
Easyrealm is one of the premade pouch packing machine manufacturers and suppliers in China. We are manufacturing and supplying all kinds of premade bag packing machines at low cost, such as mini premade pouch packing machine, double station doypack pick fill seal machine, mini doypack packing machine, automatic linear premade stand up zipper pouch packaging machine for granules, premade zip lock bag powder filling machine, premade liquid spout pouch filling and sealing machine, premade bottle shaped pouch sachet packaging machine, etc.
All kinds of premade bag packing machine can be custom designed and fabricated to your specific specifications or requirements.
Machine Video
Machine Applications
All kinds of liquids: health drinks, nutrition drinks, energy drinks, protein drinks, herbal drinks, fruit juice, orange juice, mango juice, lemon juice, yogurt (yoghurt), honey, milk, water, liquid soap, liquid detergent, oil, sauce, cream, paste, etc.

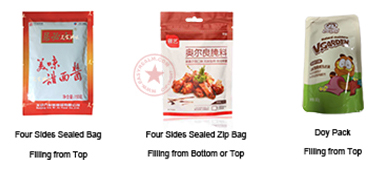

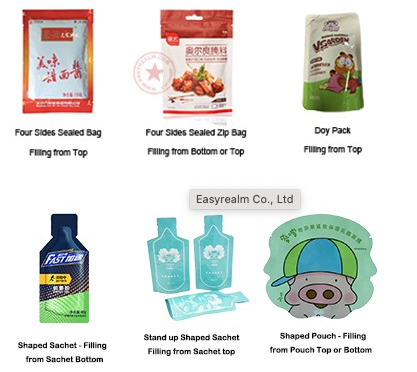

Pouch Types
Machine Specifications
1) Flexible packaging;
2) High speed;
3) Easy and simple to put bags in the bag slot, equipped with automatic bag pressing device;
4) No filling, no sealing;
5) The machine is of SS304 appearance. Carbon steel frame and some parts are acid- resistant, salt-resistant anti-corrosion layer processed.
6) Most parts are fabricated by mold production; the main material is 304 stainless and alumina.
1. 4 Pouches Picking
2. 4 Pouches Receiving
3. 4 Pouches Poking
4. 4 pouches Filling Product
5. 4 Pouches Sealing for the First Time
6. 4 Pouches Sealing for the Second Time
Optional Funcitons:
Date/batch no. printing
Model | YLM-PMHZ-90-LP |
Bag Size | Width: 60-90mm, Length: 110-230mm |
Speed | 120-160 bags per minute |
Filling volume range | 2-200ml (depending on material) |
Power Supply | 380V 50Hz 5.0KW or customized |
Machine weight | 1500kgs |
Air consumption | 0.7m3/min |
Application | Premade pouches |
