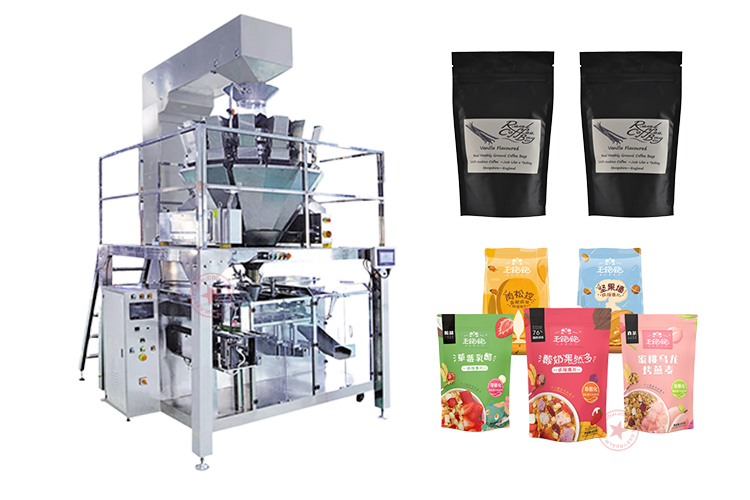

Automatic Premade Pouch Filling Sealing Packaging Machine with Weigher
This Automatic Stand up Pouch Filling Sealing Packing Machine is a low cost mini doypack packaging machine. It is for packaging all kinds of granules fully automatically.
Product Parameters
Machine Introduction
Automatic Stand up Pouch Packing Machine with Multihead Weigher Scale | Automatic Doypack Nuts Filling Machine Manufacturer | Automatic Premade Bag Snack Filling Sealing Packing Machine
- The Automatic Premade Stand up Pouch Granule Filling Packng Machine is for packaging all kinds of granules.
- It can do filling and sealing for such bag types as stand up zip pouch / stand up barrier pouch / stand up zip bag / stand up zip lock bag / stand up zip tup bag / stand up zipper pouch, doy bag, four sides sealed bag, paper bags, etc.

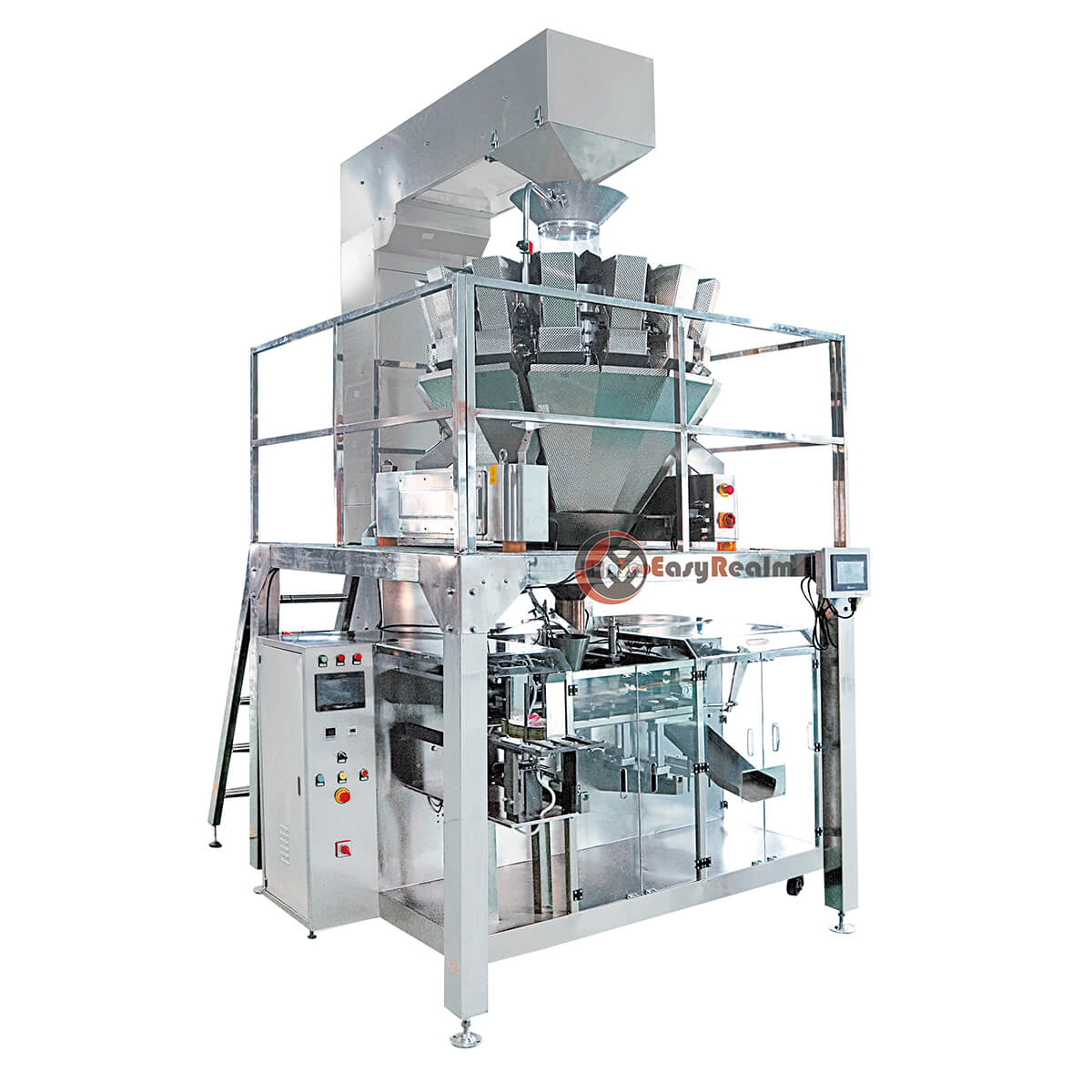

- This premade zip lock bag filling and sealing machine is composed of a material elevator, a weighing system and an automatic mini doypack pick fill seal machine.
- It does granules dosing and filling (by scale), premade bag picking up, opening, filling and sealing fully automatically with a packing speed of 20-50pcs per minute. Functions of date printing, zip opening, nitrogen flushing and euro hole punch are optional.
- Easyrealm is one of the premade pouch packing machine manufacturers in China. We are manufacturing and supplying all kinds of premade bag packing machines at low cost, such as single station premade pouch packing machine, double station pick fill seal machine, mini doypack packing machine, automatic linear premade stand up zipper pouch packaging machine for granules, premade zip lock bag powder filling machine, premade liquid spout pouch filling and sealing machine, etc.
- All kinds of mini doypack pouch packing machine can be custom designed and fabricated to your specific specifications or requirements.
Machine Video
Machine Applications
All kinds of granules: sugar, rice, salt, candy, chocolate, snacks, cookies, puffy food, pasta, spice condiments, herbs, beans, nuts, coffee beans, cashew, pistachio, peanuts, dates, cereals, dried fruits, pet food, frozen food, seeds, etc.
Pouch Types
Machine Specifications
1) Easy and simple to put bags in the bag slot, equipped with automatic bag pressing device;
2) No filling, no sealing;
3) The machine is of SS304 appearance. Carbon steel frame and some parts are acid- resistant, salt-resistant anti-corrosion layer processed.
4) Most parts are fabricated by mold production; the main material is 304 stainless and alumina.

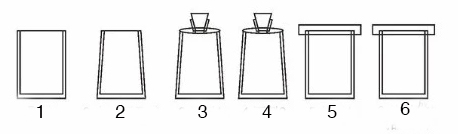

1. Pouch picking up
2. Pouch opening
3. Filling product (first time)
4. Filling product (second time)
5. Sealing (first time)
6. sealing (second time)
The working stations can be added or removed according to the products and pouch type.
Optional:
1) Date/Bath No. Printing (ribbon printer)
2) Second time sealing
3) Zip opening
4) Euro hole punch
5) Nitrogen flushing
Model | YLM-PMHZ-260GP |
Bag Size | Width: 120-260mm, Length: 110-360mm |
Speed | 20-40 bags per minute |
Filling volume range | 200g-2000g (depending on material) |
Power Supply | 380V 50Hz 4KW |
Machine weight | 1200kgs |
Air consumption | 0.7m3/min |
Application | Doy bag, stand up zipper pouch, 4 side seal bagpaper bag, zip lock bag |
