Automatic Plastic Parts Hardware Counting Packing Machine with 1 Vibratory Feeder

This automatic hardware parts counting packing machine, is suitable for nuts bolts packing, screw packaging, plastic parts packaging, O-ring packing, rubber products packaging, molded parts packaging.

Product Parameters

BrandEASYREALM
NO.YLM-320V1-CP
Get Latest Price

Machine Introduction

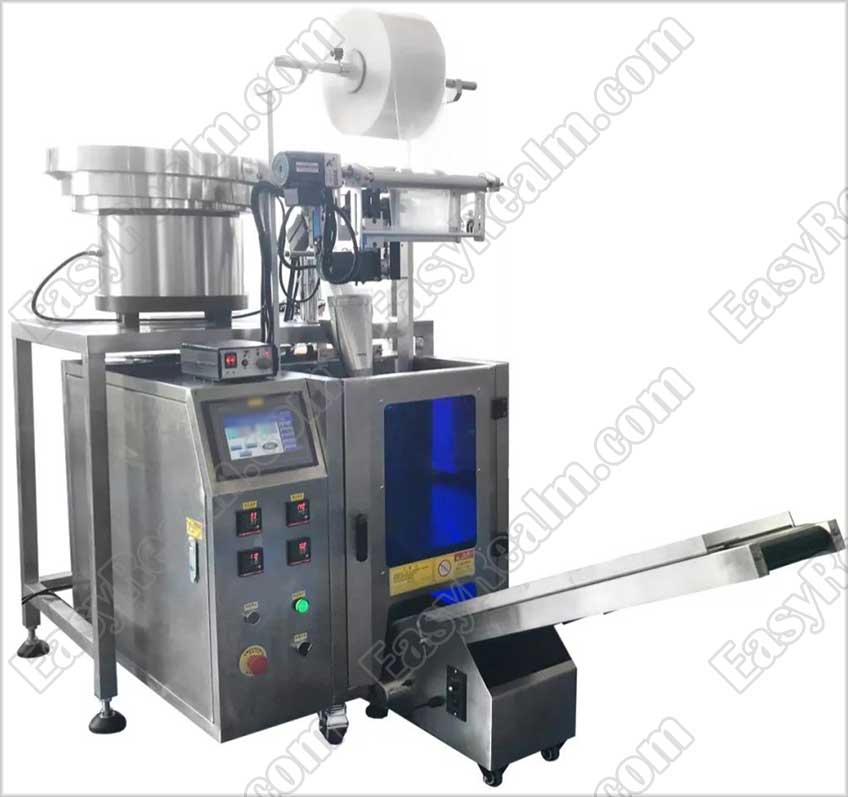

Automatic Plastic Parts Hardware Counting Packing Machine with 1 Vibratory Feeder

  • This counting packaging machine has a big bright spot, using PE film. It greatly reduce the packaging costs, thus improving the overall market competitiveness for enterprises. PE film has such features: soft, transparent, non-toxic, high tension strength, excellent puncture resistance, moisture insulation, durable and waterproof.
  • Infrared optical counting system; high precision of counting.
  • Applicable for many types of parts; very economic.

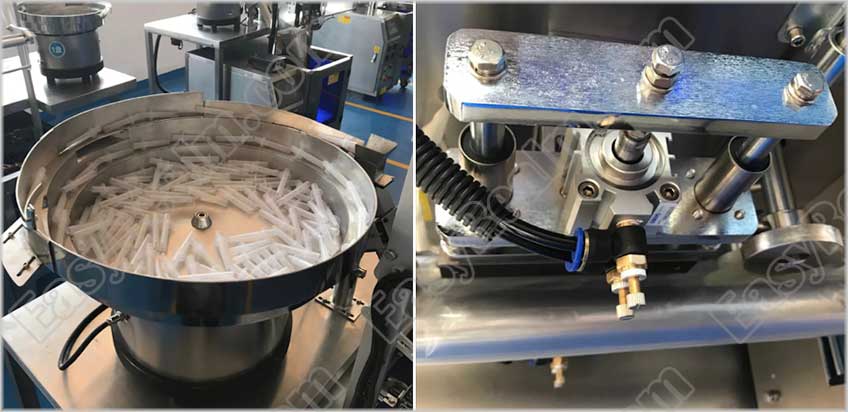

  • Vibratory feeder, easy to change.
  • Vibratory feeders need not be adjusted each time for different size and length of parts packed.
  • Set the required number of parts packed and package number on the 7-inch color touch screen, the machine can do packaging accurately.
  • Pneumatic pillow-pack bagging machine has the advantages of the small footprint, low noise.
  • Mitsubishi PLC control system is easy to use, stable and durable.
  • Minimal maintenance requirements
  • Intelligent temperature controller
  • The machine stops automatically while vibratory feeder lacking in material
  • Bag forming, filling, sealing and cutting is done in one time.

Machine Video


Machine Applications

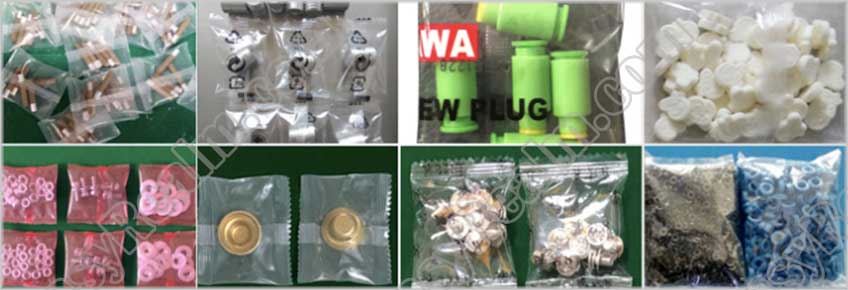

  • Hardware Parts: nuts bolts joint, nuts, bolts, screws, pins, steel nails, washers, rivets, fasteners, etc.
  • Rubber Parts/Plastic Parts: wall anchors, O-rings, pipe clips, rubber housing, molded parts, etc.
  • Furniture Hardware: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, cabinet hardware, door hardware, lock hardware, hinge hardware.
  • Toys: small rubber toys, LEGO building bricks, dice, etc.
  • Foods & Pills: tablet capsule, effervescent tablet, milk tablet, jelly beans, sugar-coating tablet, non-sticky Candies, etc.
  • Others: kitchen hardware, bike hardware, computer hardware, electronic hardware parts, etc.

  • Take-away conveyor
  • Highly sensitive checkweighers
  • Sponge soundproof housing
  • Automatic labeler
  • Gas(Nitrogen) flush device
  • Tear notch device
  • Round or Euro hole punch device
  • Alarm light
  • Automated feeding system
  • Code printer

How to use the hardware counting bagging packing machine? Read this.

1. Plug in power and feed 6-8 kg air source; turn on the bagging machine to heat it (to the pre-designed bag sealing condition) ;

2. Pour the material-to-be-packed in o the vibratory feeder, start it and adjust the vibrating frequency;

3. Set the numbers of parts per bag on the touch screen, and then set the length of the bag according to this;

4. Turn on the code printing machine for heating, to automatic temperature control state; make sure that bag forming beautiful, and cursor positioning is good;

5. Set the production capacity, and press the start button.

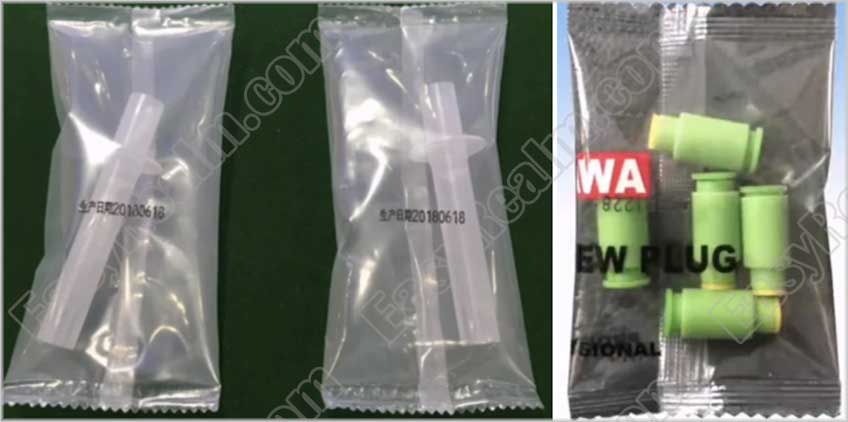

Pouch Types

  • Hardware Parts: nuts bolts joint, nuts, bolts, screws, pins, steel nails, washers, rivets, fasteners, etc.
  • Rubber Parts/Plastic Parts: wall anchors, O-rings, pipe clips, rubber housing, molded parts, etc.
  • Furniture Hardware: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, cabinet hardware, door hardware, lock hardware, hinge hardware.
  • Toys: small rubber toys, LEGO building bricks, dice, etc.
  • Foods & Pills: tablet capsule, effervescent tablet, milk tablet, jelly beans, sugar-coating tablet, non-sticky Candies, etc.
  • Others: kitchen hardware, bike hardware, computer hardware, electronic hardware parts, etc.


Machine Specifications

ModelYLM-320V1-CP
FilmOPP/CPP,OPP/PE,CPP/PE
Bag Lengthmax. 280mm(bag pulling twice)
Bag Width70-150mm (forming device needs changing for different size)
Film Widthmax. 320 mm
Packing Speed20-150 bag/min (according to characristics of parts packed, film, number of parts per bag
Counting MethodInfrared optical counting system / track positioning
Quantity of Parts per BagAs long as the bag can accomodate
Bag Typepillow pack or three side sealed
Seam Width10 mm
Bag Forming Devicetrunk forming device, pneumatic sealing and cutting
Cutting Methodpattern welded knife
Bag Length Controlsetting on touch screen / photoelectric sensor
Air Discharging Methodair hole
Linking Bagfunction of bag linking can be set on touch screen
Air pressure0.4-0.8Mpa (air compressor prepared by customer)
Voltage220V 50Hz or customized
Power2.0 Kw
Overall SizeCustomized
