Multi-Lane(10 Lanes) Round Cut Mouthwash Liquid Sachet Filling Packing Machine
This multi-lane liquid sachet filling machine is for filling stick packs, suitable for mouthwash sachet packing, honey sachet packaging, paste sachet packing.
Product Parameters
NO.YLM-MLBS-560L
Alibaba https://easyrealm.en.alibaba.com
BrandEASYREALM
Machine Introduction

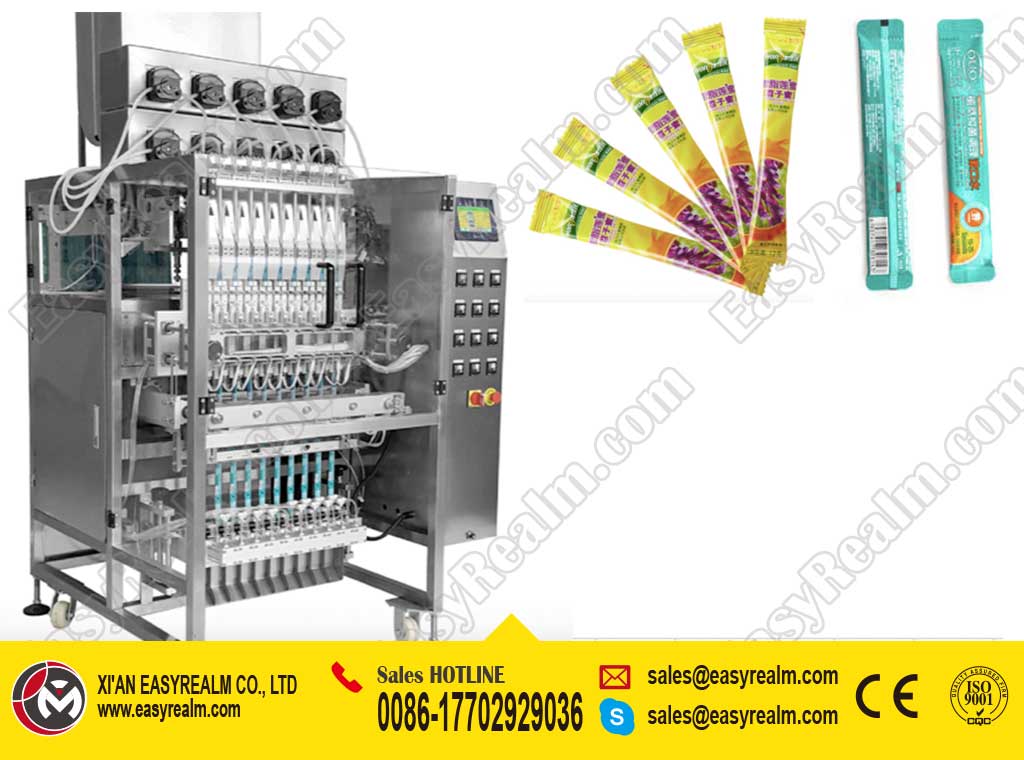

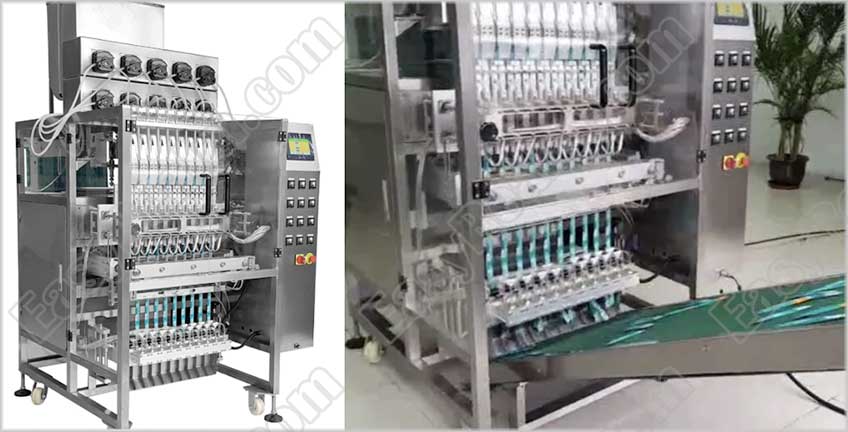

Multi-Lane(10 Lanes) High Speed Round Cut Mouthwash Liquid Sachet Filling Packing Machine
This multi-lane liquid sachet filling machine is suitable for packing liquid or paste materials in stick packs, such as mouthwash, water, sauce, honey, etc.
Machine Video
Machine Applications

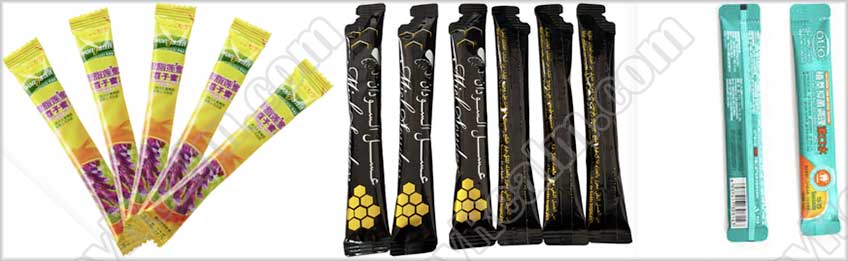

Pouch Types
- Round cut or irregular shape cut;
- PLC control system, large touch screen, stable and easy to use;
- Advanced technology, high precision and high speed;
- Shutdown while no film, no waste of film;
- Photoelectric tracking system for precise bag length and position of film.
Machine Specifications
Model | YLM-MLBS-560L |
Lanes number | 8~12 lanes |
Capacity | 35 bags per min per lane |
Bag size | L:50--180mm; W:17-30mm |
Film width | Max.560mm |
Film thickness | 0.05--0.1mm |
Sealing type | Back sealing / stick packs |
Control system | PLC+Servo+Touch screen |
Power supply | 1N+PE/50HZ/AC220V/5KW |
Air consumption | 0.8 MPA 0.6m3/min |
Dimension | 1585*1300*2000mm |
Weight | 450kgs |
