Multilane(4 lanes) Round Cut Stick Pack Sachet Powder Packaging Machine
This multilane stick pack packaging machine, is suitable for coffee sachet packing, milk powder sachet packaging, whey protein stick pack packaging, drink mix stick packs filling packaging, nutritional supplement stick packs packaging, etc.
Product Parameters
BrandEASYREALM
Alibaba https://easyrealm.en.alibaba.com
NO.YLM-480SP

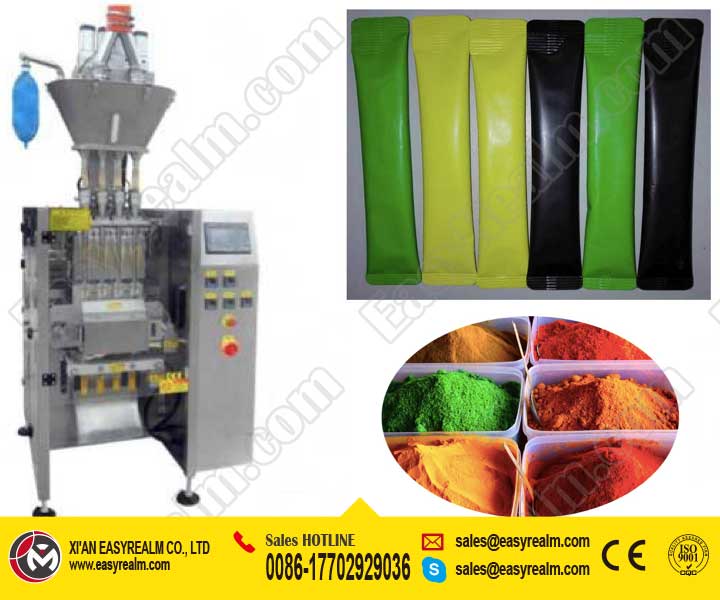

Machine Introduction
Multilane(4 lanes) Round Cut Stick Pack Sachet Powder Packaging Machine
This multilane stick pack bag packing machine is suitable for packing powder products: instant coffee, milk powder, whey protein, drink mix, nutritional supplement, probiotic supplements, etc.
Machine Video

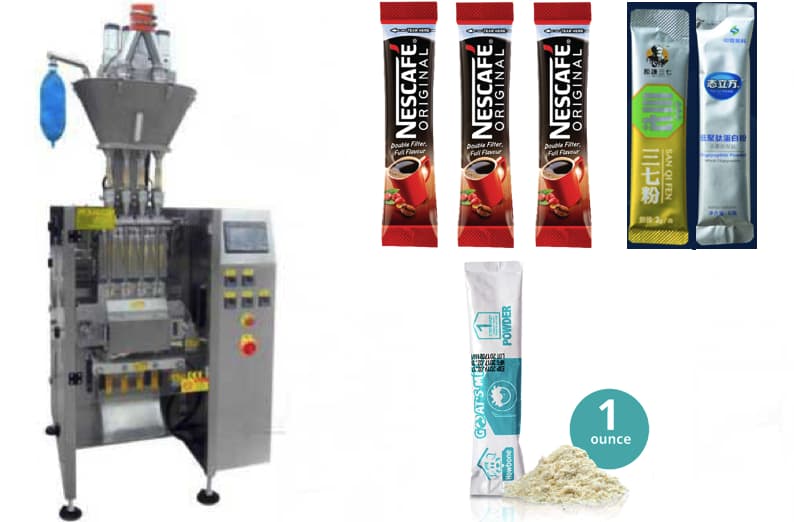

Machine Applications

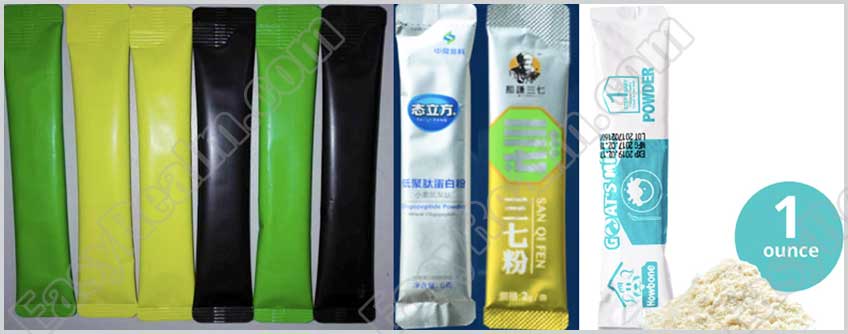

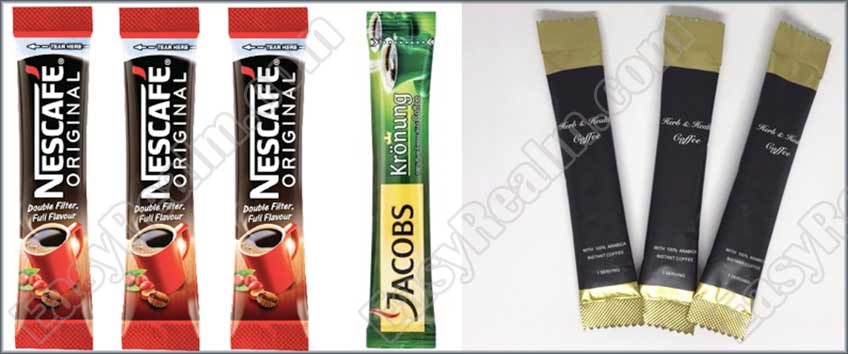

Pouch Types
- Round cut, zigzag cut, straight cut, irregular shape cut;
- 4 lanes, high speed, greatly saving labor costs;
- PLC control system, large touch screen, stable and easy to use;
- Advanced technology, high precision;
- Shutdown while no film, no waste of film;
- Photoelectric tracking system for precise bag length and position of film, nice appearance of finished products.
Machine Specifications
Model | YLM-480SP |
Lanes number | 4~6 lanes |
Capacity | max. 30 bags per min per lane |
Bag size | L:50--180mm; W:17-30mm |
Film width | Max.280mm |
Film thickness | 0.07--0.1mm |
Sealing type | stick pack |
Control system | PLC+Servo+Touch screen |
Power supply | 1N+PE/50HZ/AC220V |
Air consumption | 0.8 MPA 0.8m3/min |
Dimension | 1385*918*2000mm |
Weight | 350kgs |
