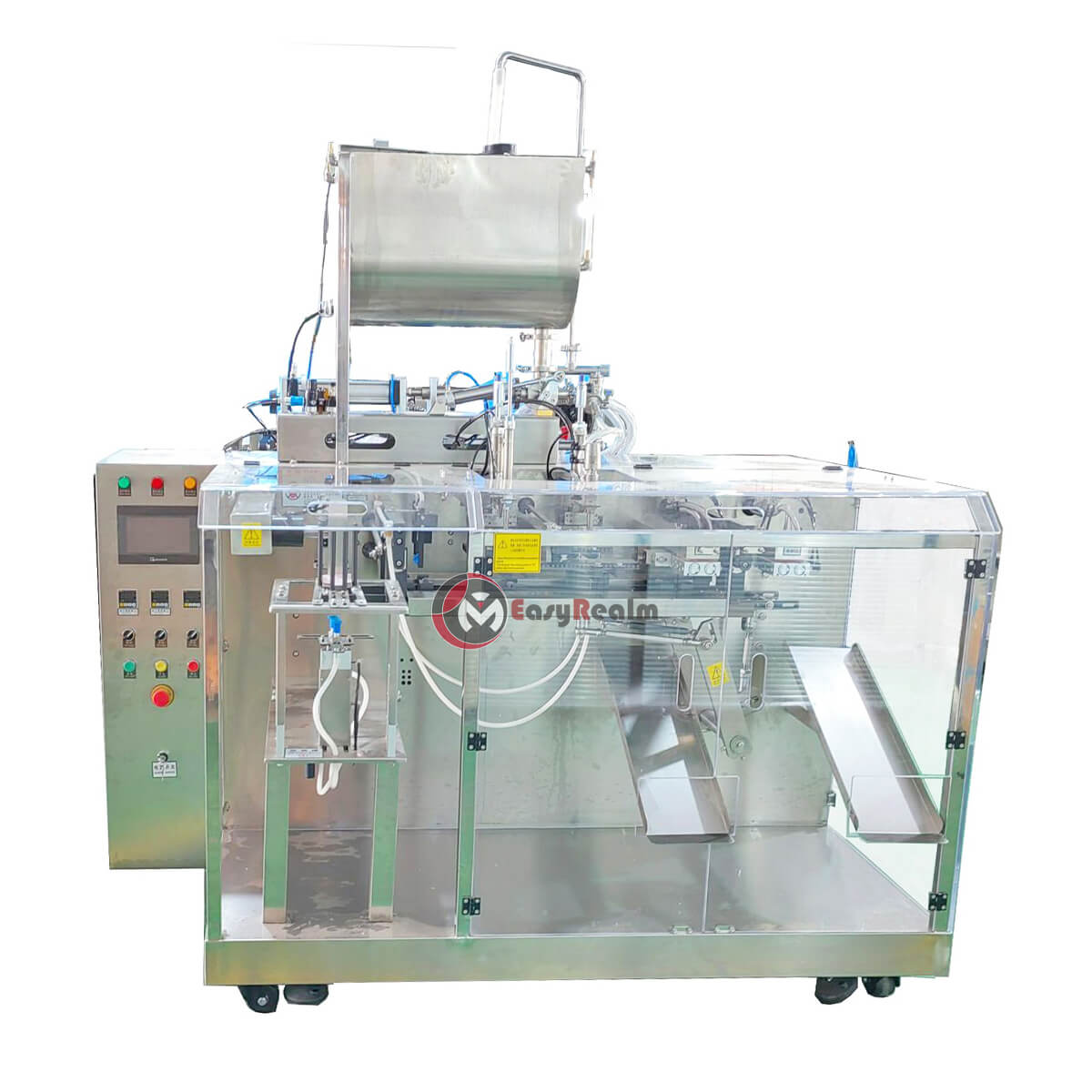

Automatic Doypack Pouch Packing Machine - Liquid/Paste/Sauce Pouch Filling Sealing Machine
a low cost mini pick fill seal doypack packing machine. It is for filling liquid paste in o premade pouches, spout pouches fully automatically.
Product Parameters
Machine Introduction
Automatic Stand up Pouch Filling Machine | Liquid/Paste Pouch Filling Sealing Machine | Automatic Linear Doypack Packing Machine
- The mini premade pouch packing machine is for packaging liquid products or paste products in o premade stand up spout pouches or premade bags.
- It can do filling and sealing for such bag types as stand up zip pouch / stand up barrier pouch / stand up zip bag / stand up zip lock bag / stand up zip tup bag / stand up zipper pouch, doy bag, spout pouch (with nozzle or cap in the corner of the pouch), four sides sealed bag, paper bags, etc.
- This mini premade spout pouch filling and sealing machine is composed of a dosing & filling pump, a liquid material hopper and an automatic premade pouch pick fill seal machine.
- It does material dosing and filling (by pump), premade bag picking up, date printing, zip opening, filling and sealing fully automatically with a packing speed of 20-50pcs per minute. Functions of date printing, zip opening and euro hole punch are optional.
- Easyrealm is one of the premade pouch packing machine manufacturers in China. We are manufacturing and supplying all kinds of premade bag packing machines at low cost, such as single station premade pouch packing machine, double station pick fill seal machine, mini doypack packing machine, automatic linear premade stand up zipper pouch packaging machine for granules, premade zip lock bag powder filling machine, premade liquid spout pouch filling and sealing machine, etc.
- All kinds of premade zipper bag packing machine can be custom designed and fabricated to your specific specifications or requirements.
Machine Video
Machine Applications
Foods: edible oil, olive oil, fruit juice, soft drinks, water, milk, yogurt, salad, mayonnaise, tomato paste, tomato ketchup, soy sauce, duck sauce,anchovy essence, cocktail sauce, salsa, barbecue sauce, ranch dressing, dressing, mayo, hot sauce, chilli sauce, cheese sauce, pasta sauce, spaghetti sauce, etc
Others: ink, car wash detergent, liquid laundry detergent, liquid soap, etc.

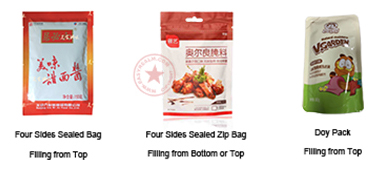

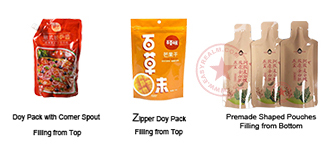

Pouch Types
Machine Specifications
1) Easy and simple to put bags in the bag slot, equipped with automatic bag pressing device;
2) No filling, no sealing;
3) The machine is of SS304 appearance. Carbon steel frame and some parts are acid- resistant, salt-resistant anti-corrosion layer processed.
4) Most parts are fabricated by mold production; the main material is 304 stainless and alumina.

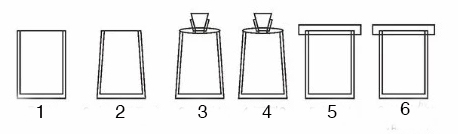

Working Process
1. Pouch picking up2. Pouch opening3. Filling product (first time)4. Filling product (second time)5. Sealing (first time)6. sealing (second time)The working stations can be added or removed according to the products and pouch type.Optional:1) Date/Bath No. Printing (ribbon printer)2) Second time sealing3) Zip opening4) Euro hole punch
Model | YLM-PMHZ-260LP |
Bag Size | Width: 110-260mm, Length: 110-360mm |
Speed | 20-30 bags per minute |
Filling volume range | 200g-2000g (depending on material) |
Power Supply | 380V 50Hz 4KW |
Machine weight | 1200kgs |
Air consumption | 0.7m3/min |
Application | Premade pouch (doy pack, zip pouch, pouch with spout/cap) |
