Automatic Liquid / Paste / Suace Premade Spout Pouch Filling Machine
for picking filling sealing large premade pouches, spout doy packs fully automatically, etc.
Product Parameters
Machine Introduction
Automatic 2L Sauce Premade Pouch Packing Machine | Automatic Premade Pouch Packaging Machine Manufacturer | Automatic Large Premade Spout Pouch Filling Sealing Packing Machine
- The mini premade pouch packing machine is for packaging liquid products or paste products in o premade stand up spout pouches or premade bags.
- It can do filling and sealing for such bag types as stand up zip pouch / stand up barrier pouch / stand up zip bag / stand up zip lock bag / stand up zip tup bag / stand up zipper pouch, doy bag, spout pouch (with nozzle or cap in the corner of the pouch), four sides sealed bag, paper bags, etc.

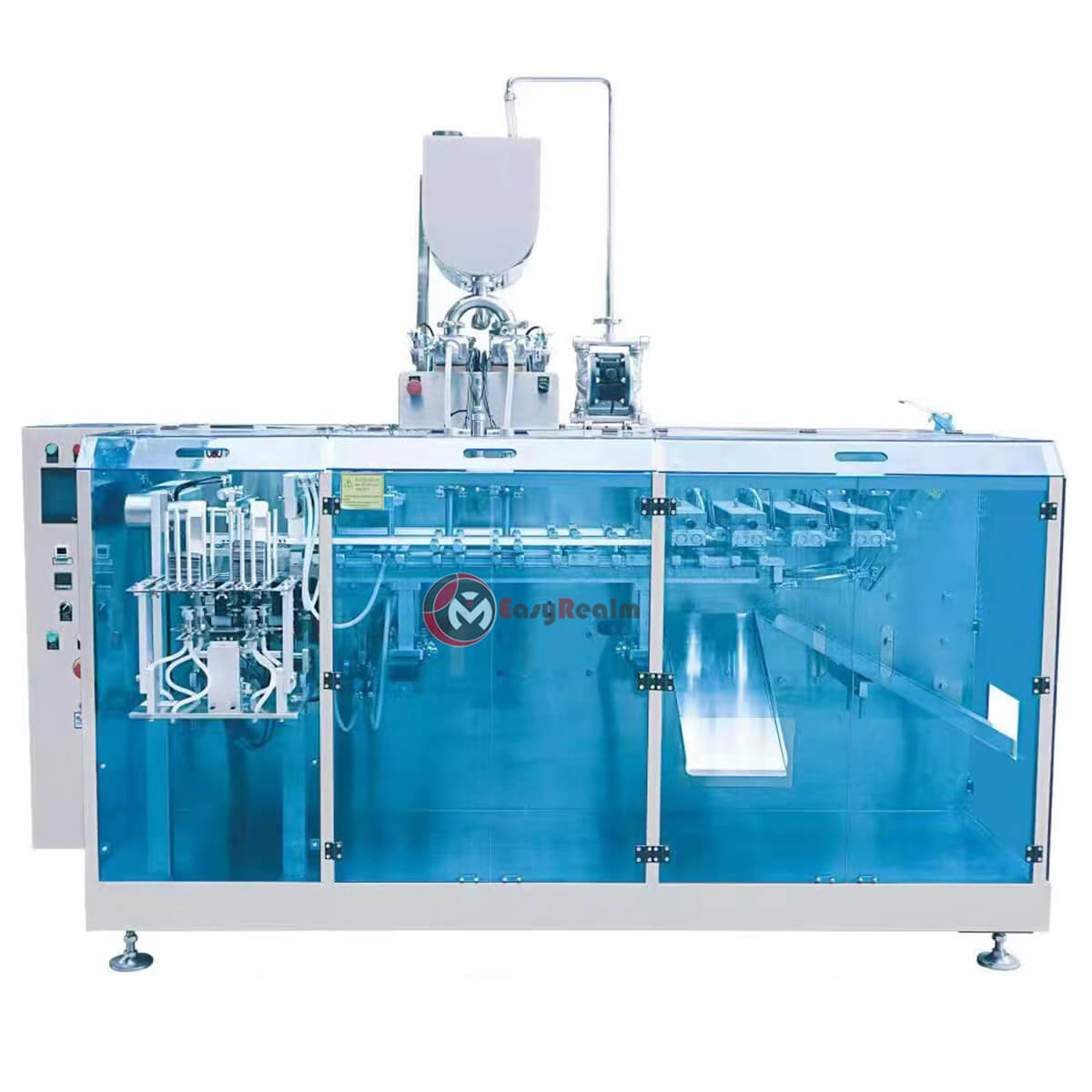

- This mini premade spout pouch filling and sealing machine is composed of a dosing & filling pump, a liquid material hopper and an automatic premade pouch pick fill seal machine.
- It does material dosing and filling (by pump), premade bag picking up, opening, filling and sealing fully automatically with a packing speed of 20-50pcs per minute. Functions of date printing, zip opening and euro hole punch are optional.
- Easyrealm is one of the premade pouch packing machine manufacturers in China. We are manufacturing and supplying all kinds of premade bag packing machines at low cost, such as single station premade pouch packing machine, double station pick fill seal machine, mini doypack packing machine, automatic linear premade stand up zipper pouch packaging machine for granules, premade zip lock bag powder filling machine, premade liquid spout pouch filling and sealing machine, etc.
- All kinds of premade zipper bag packing machine can be custom designed and fabricated to your specific specifications or requirements.
Machine Video
Machine Applications
Foods: edible oil, olive oil, fruit juice, soft drinks, water, milk, yogurt, salad, mayonnaise, tomato paste, tomato ketchup, soy sauce, duck sauce,anchovy essence, cocktail sauce, salsa, barbecue sauce, ranch dressing, dressing, mayo, hot sauce, chilli sauce, cheese sauce, pasta sauce, spaghetti sauce, etcOthers: ink, car wash detergent, liquid laundry detergent, liquid soap, etc.

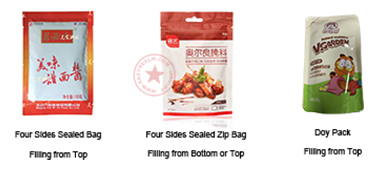

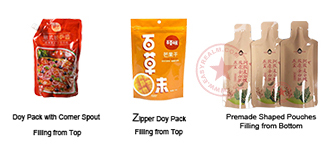

Pouch Types
Machine Specifications
1) Easy and simple to put bags in the bag slot, equipped with automatic bag pressing device;
2) No filling, no sealing;
3) The machine is of SS304 appearance. Carbon steel frame and some parts are acid- resistant, salt-resistant anti-corrosion layer processed.
4) Most parts are fabricated by mold production; the main material is 304 stainless and alumina.

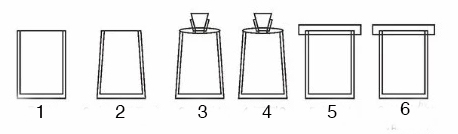

Working Process
1. Pouch picking up
2. Pouch opening
3. Filling product (first time)
4. Filling product (second time)
5. Sealing (first time)
6. sealing (second time)
The working stations can be added or removed according to the products and pouch type.
Optional:
1. Date/batch no printing
2. Zip opening
3. Euro hole punch
Model | YLM-PMHZ-260LP |
Bag Size | Width: 120-260mm, Length: 110-360mm |
Speed | 20-30 bags per minute |
Filling volume range | 200-2000ml (depending on material) |
Power Supply | 380V 50Hz 4.5KW |
Machine weight | 1200kgs |
Air consumption | 0.7m3/min |
Application | Doy bag, spout pouch, stand up zipper pouch4 side seal bag |
