Automatic Assembly Kitting(Parts) Packing Machine with 10 Vibratory Feeders
This assembly kitting(parts) packaging machine, is suitable for assembly kit packaging, mixed hardware accessory packing, tube fitting packaging, mixed small parts packaging.
Product Parameters
Machine Introduction

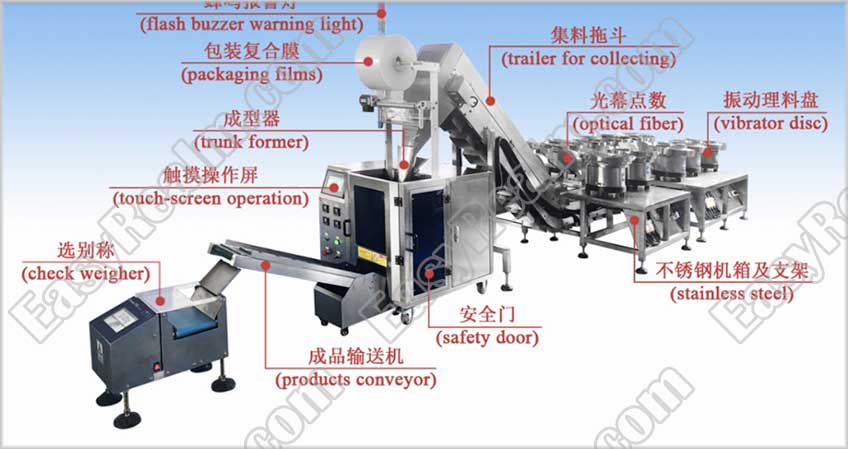

Automatic Assembly Kitting(Parts) Packing Machine with 10 Vibratory Feeders

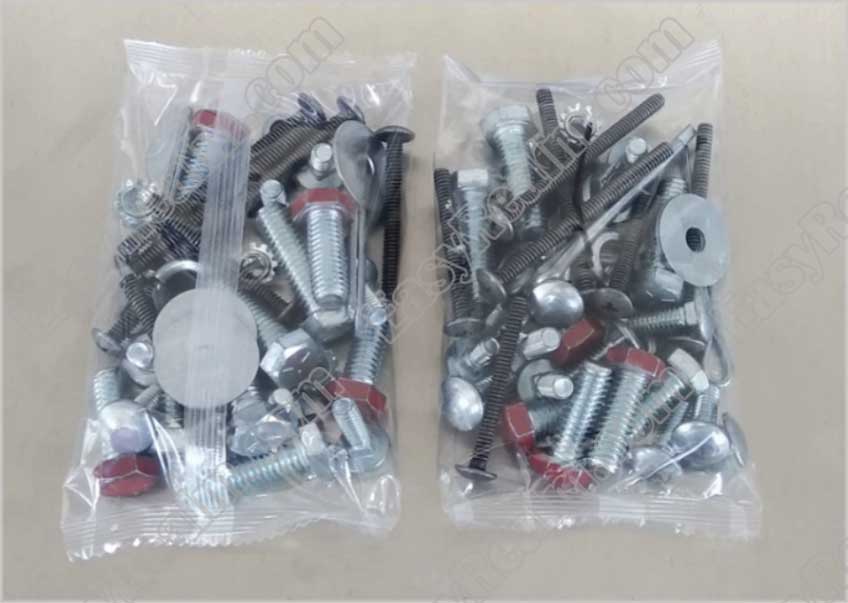

This automatic assembly kit packing machine is suitable for mixed packaging of several types of small parts or assembly kits in bags:
Hardware Parts: nuts bolts joint, nuts, bolts, screws, pins, steel nails, washers, rivets, fasteners, etc.
Rubber Parts/Plastic Parts: wall anchors, O-rings, pipe clips, rubber housing, molded parts, etc.
Furniture Hardware: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, cabinet hardware, door hardware, lock hardware, hinge hardware.
Toys: small rubber toys, LEGO building bricks, dice, etc.
Foods & Pills: tablet capsule, effervescent tablet, milk tablet, jelly beans, sugar-coating tablet, non-sticky Candies, etc.
Others: kitchen hardware, bike hardware, computer hardware, electronic hardware parts, etc.
Machine Video
Machine Applications
- Automatically mixed packaging of a variety of small parts, greatly saving labor cost.
- Vibratory feeder, easy to change, four vibratory feeders can do the feeding simultaneously or separately.
- Vibratory feeders need not be adjusted each time for different size and length of parts packed.
- Set the required number of parts packed and package number on the 7-inch color touch screen, the machine can do packaging accurately.
- Pneumatic pillow-pack bagging machine has the advantages of the small footprint, low noise.
- Mitsubishi PLC control system is easy to use, stable and durable.
- Minimal maintenance requirements
- Tow truck collection, plain and simple
- Infrared optical counting system, faster and with high accuracy
- Intelligent temperature controller
- The machine stops automatically while vibratory feeder lacking in material
- Bag forming, filling, sealing and cutting is done in one time.
Pouch Types
take-away conveyor
highly sensitive checkweighers
Sponge soundproof housing
Automatic labeler
Gas(Nitrogen) flush device
Tear notch device
Round or Euro hole punch device
Alarm light
Automated feeding system
Code printer
Machine Specifications
| Model | YLM-320C10-CP |
| Film | OPP/CPP锛孫PP/PE锛孋PP/PE |
| Bag Length | max. 280mm(bag pulling twice) |
| Bag Width | 70-150mm (forming device needs changing for different size) |
| Film Width | max. 320 mm |
| Packing Speed | 8-20 bag/min (according to characristics of parts packed, film, number of parts per bag |
| Counting Method | Infrared optical counting system / track positioning |
| Quantity of Parts per Bag | As long as the bag can accomodate |
| Bag Type | pillow pack or three side sealed |
| Seam Width | 10 mm |
| Bag Forming Device | pneumatic sealing and cutting |
| Cutting Method | pattern welded knife |
| Bag Length Control | setting on touch screen / photoelectric sensor |
| Air Discharging Method | air hole |
| Linking Bag | function of bag linking can be set on touch screen |
| Air pressure | 0.4-0.8Mpa (air compressor prepared by customer) |
| Voltage | 220V 50Hz or customized |
| Power | 2.0 Kw |
| Overall Size | Customized |
